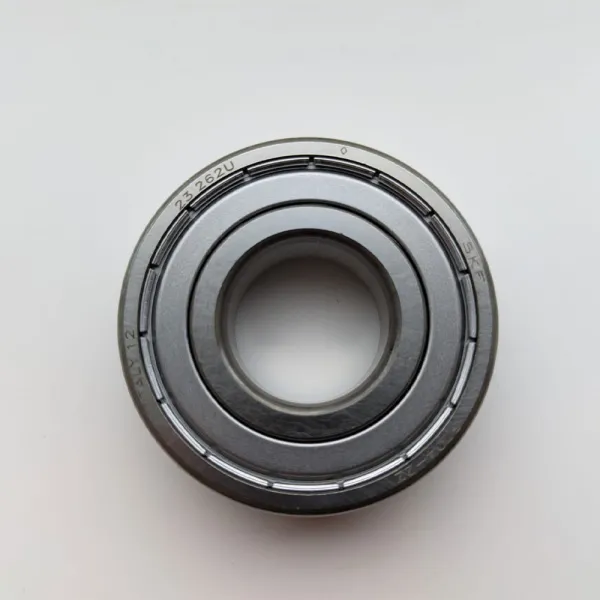

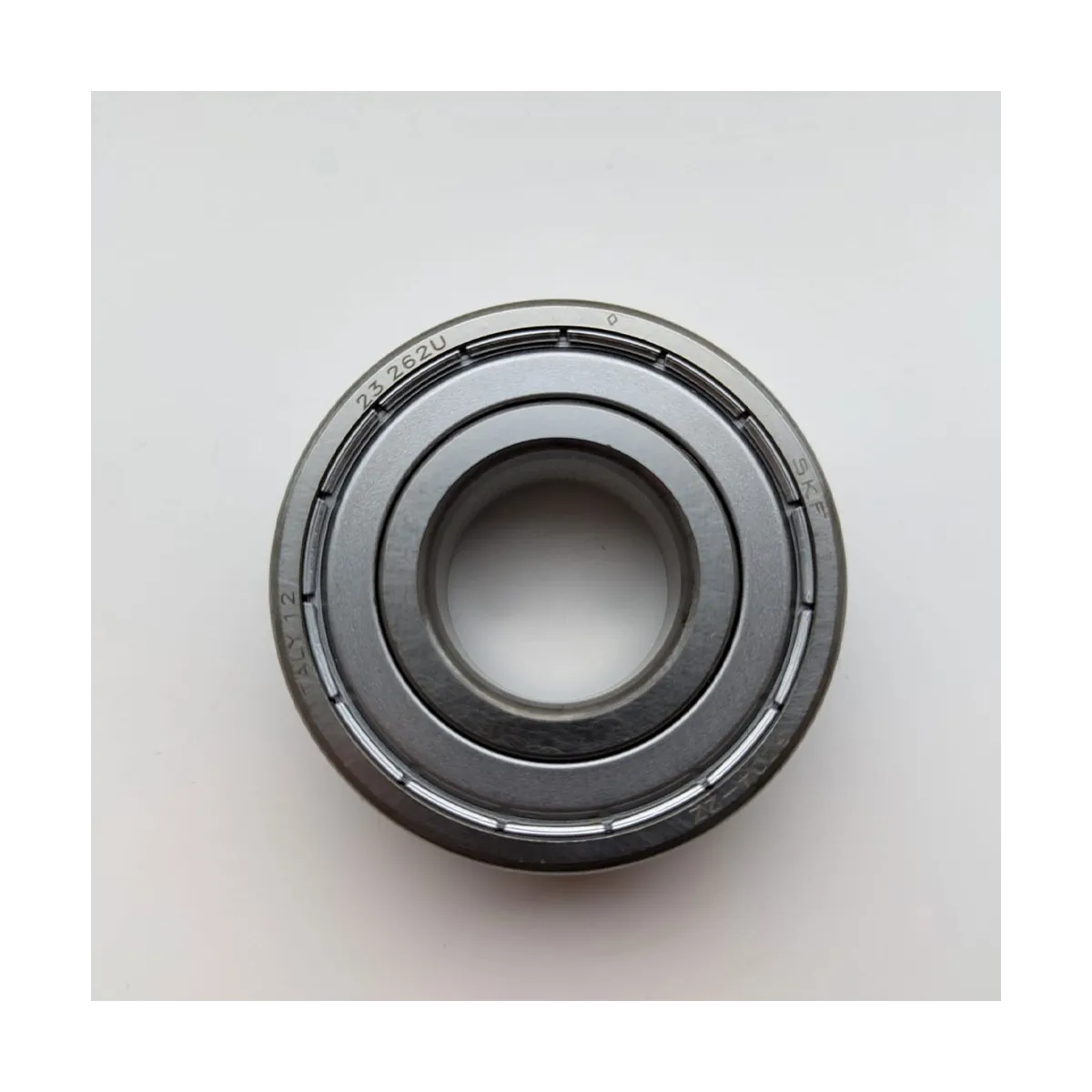

SKF 609-2Z/C3 Metal Shielded Single Row Deep Groove Ball Bearing 9x24x7mm
Metal Shielded deep groove ball bearings are the most popular bearings available, with metal shields that are included within the outer raceway. The shields are tightly fitting against the inner race and they provide protection against mild mechanical contact and the entrance of dust, moisture and other contamination. They also contribute to the retention of pre installed grease, with maintenance free application. For applications of single shield, one seal can be removed. These bearings are cost effective, permanently lubricated and appropriate for applications that require mild mechanical protection and limited contamination.
Description
Product Details
- Inner Diameter
- 9mm
- Outer Diameter
- 24mm
- Width
- 7mm
- Closure Type
- Metal shielded
- Clearance
- Slightly increased radial clearance(C3)
- Material
- Bearing Steel
- Dynamic Load
- 3.9kN
- Static load
- 1.66kN
- Cage
- Sheet Steel Cage
- Bore
- Cylindrical Bore
- Weight
- 0.015 kg
- Country of Origin
- Italy
- Temperature Range
- -20 to +120 °C
- Ball Rows
- Single Row
- SKF performance class
- Explorer
- Ball Bearing Type
- Single Row Deep Groove Ball Bearing
- Model Number p
- 609
