Sealed Deep Groove Ball Bearings
Both axial and radial loads can be handled in both directions by SKF sealed deep groove ball bearings, which are adaptable ball bearings that work well at high and extremely high speeds. Very minimal upkeep is required for the ball bearings. There are several sizes available for SKF deep groove ball bearings. Single row ball bearings are in this range.
Two synthetic rubber seals are installed on sealed (2RS1) bearings to stop oil leaks and the entry of dust, water, and other potentially dangerous substances.
Features and Benefits
The synthetic rubber used to make the seals is resistant to wear and oil, and it is reinforced with steel.
It supports axial and radial loads and operates between -40°C and +120°C. It has both standard and C3 clearance.
The Application
Food and Beverage Sector
Pharmaceutical
Engines and pumps
printing
The medical Industry
versatile
Additional Details
what are Deep groove ball bearings?
These bearings, which include an inner ring, outer ring, cage, and ball bearings, are the most widely used kind. The raceway grooves on the bearings are deep. These bearings have a high load capacity and excellent performance.
why use sealed ball bearings?
High-speed rotating ball bearings need to be lubricated and kept clean. Ball bearings that have been sealed have a longer lifespan because they are better protected from dirt and grease.

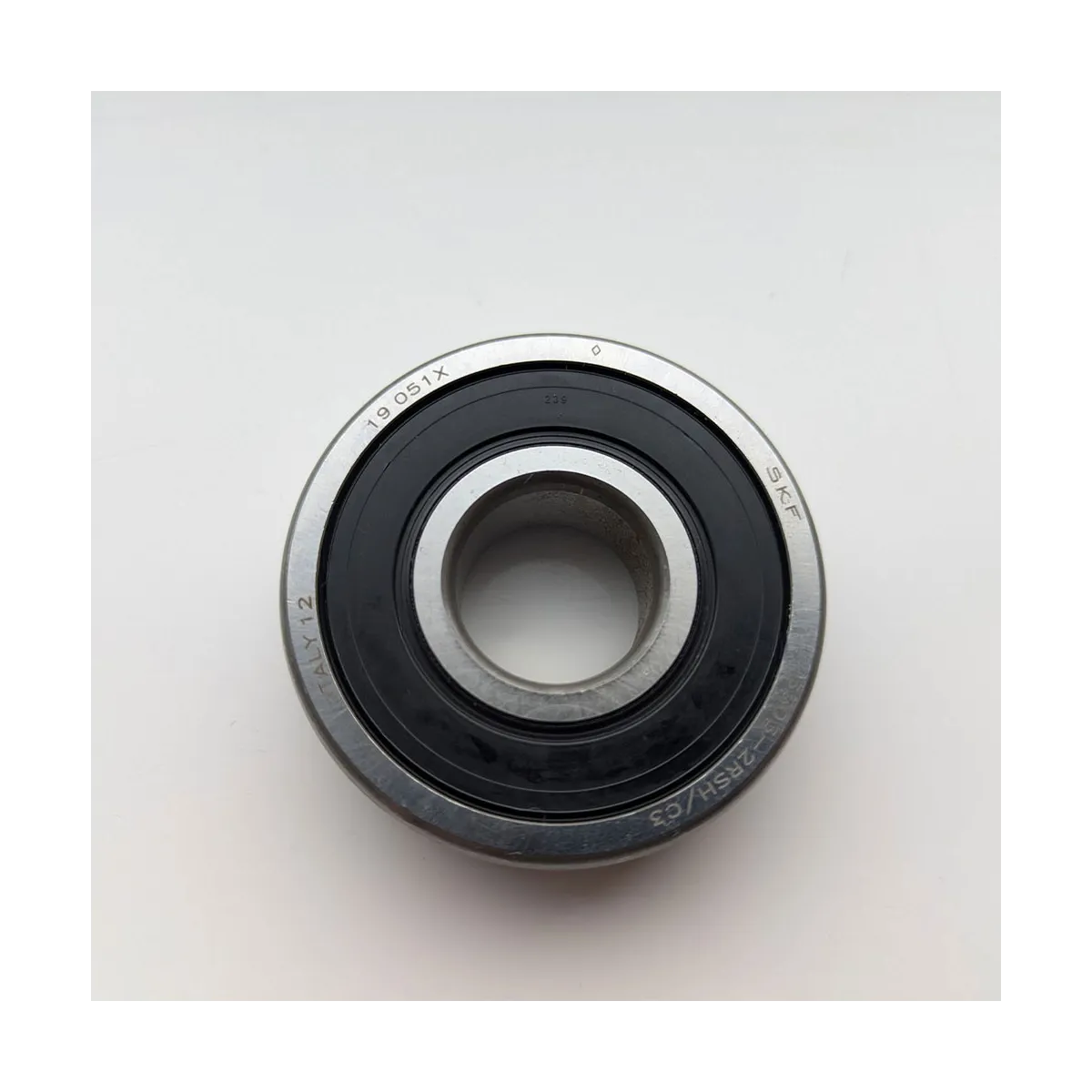

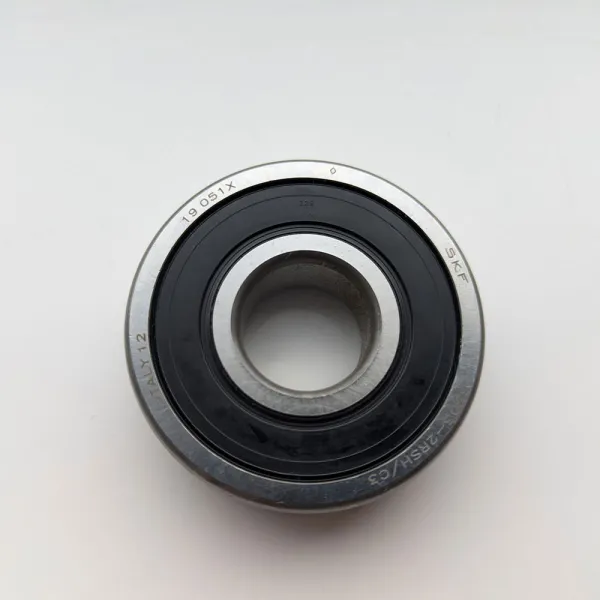

SKF Rubber Sealed Single Row Deep Groove Ball Bearing 12x37x12mm-6301-2RSH/C3
This deep groove ball bearing, which has an outside diameter of 37mm and an internal diameter of 12mm, is made for high-performance applications. With a race width of 12mm and sealed on both sides, this single row ball bearing is designed to provide reliable performance in a range of mechanical environments. Its C3 clearance guarantees that dynamic loads will fit it well.
Features
Durability is ensured by the high dynamic load rating of 10.1 kN.
C3 clearance provides improved tolerances for thermal expansion; dual seals protect against impurities and extend reliability.
Strong and resistant to corrosion, steel structure is appropriate for high-speed applications with a r/min rating of up to 14,000; its compact design maximises space while maintaining performance.
Application
Applied to electric motor assemblies to ensure effective operation
Often used in conveyor systems to handle items consistently
Used in automotive for reliable performance
Appropriate for automation-based machinery for accurate motions
Integrated with industrial machinery for reliable effectiveness
What are the benefits of the sealing arrangement?
Both sides have a sealing arrangement that keeps out moisture and dust, increasing longevity and keeping peak performance under challenging conditions. This dual-seal design offers greater protection against contamination and stops lubrication leakage.
What effect does the C3 clearance have on operational efficiency?
Greater internal clearance made possible by the C3 clearance accommodates thermal expansion and lowers the possibility of interference while the system is operating. Performance stability is improved by this feature, particularly when load conditions change.
What load ratings are supported by this bearing?
It is appropriate for applications with different load needs because of its 4.15 kN static load rating and 10.1 kN dynamic load rating. Both static applications and high-performance movements are made possible by this balance.
How might the speed rating affect the choice of application?
This bearing's 14,000 r/min speed rating makes it perfect for high-speed applications, allowing for effective rotation and less operating wear. In fast-moving applications, choosing a bearing with a sufficient speed rating guarantees peak performance.
