SKF 6309 Bearing | Deep Groove Ball Bearing

SKF 6309 Bearing | Deep Groove Ball Bearing

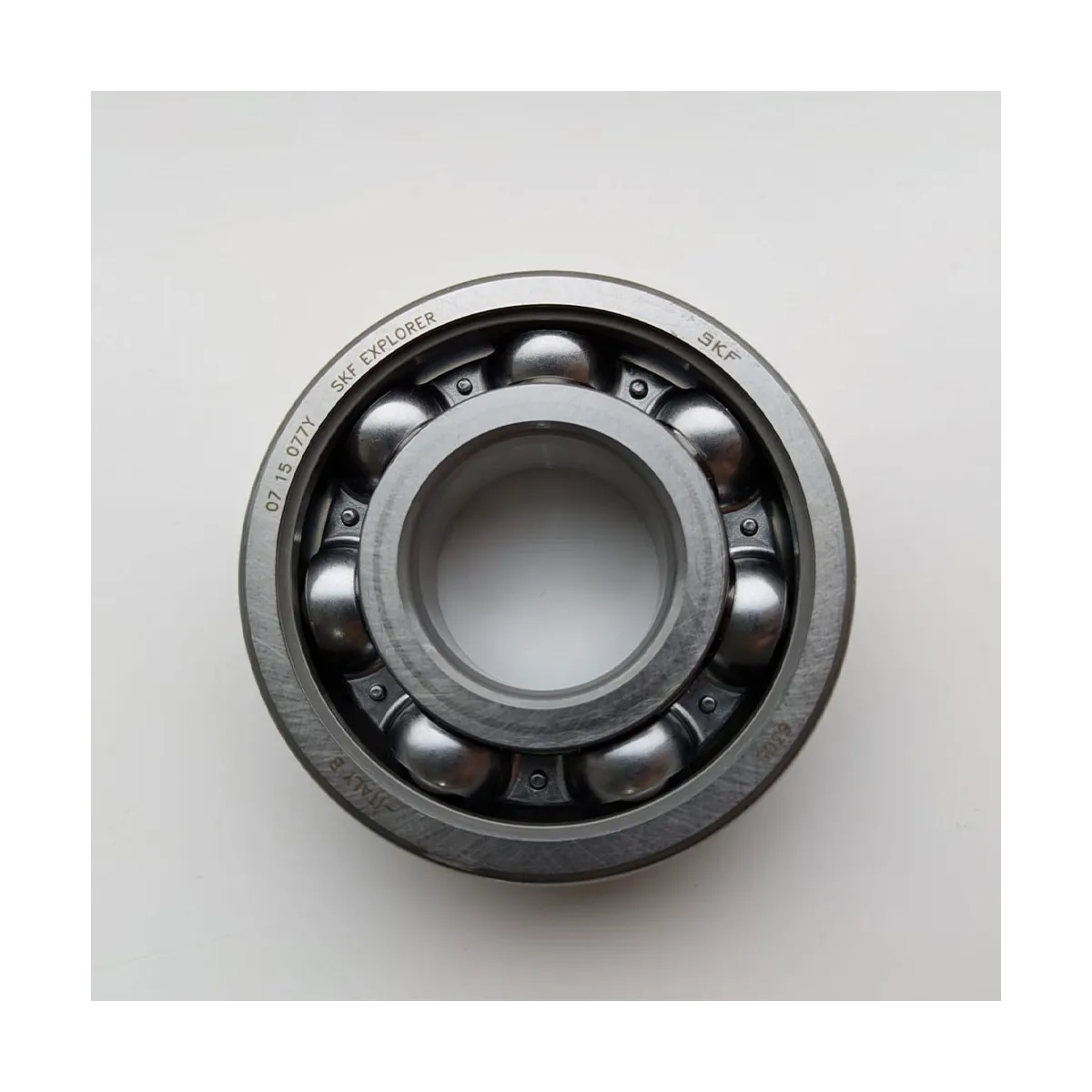

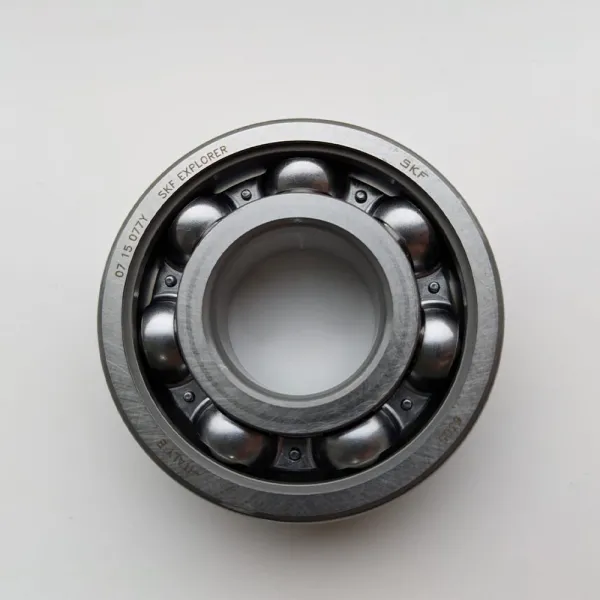

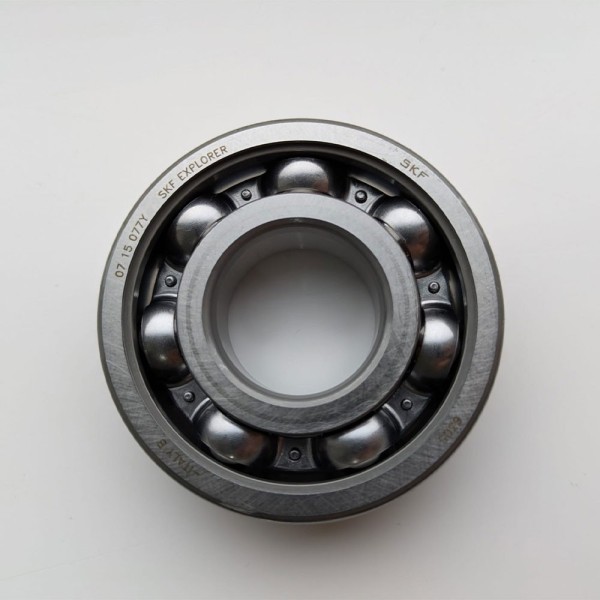

SKF 6309 Open Single Row Deep Groove Ball Bearing 45x100x25mm

Open deep groove ball bearings are the most widely applied bearings. They are made with no seals or shields so the oil or grease may circulate freely. Due to this design, they are suited best in gearboxes and continuous lubrication equipment as well as in industrial applications. Highly reliable and cost-effective, the bearings offer smooth operation, high-speed capability, and long lifespan as well. They are therefore applied with great flexibility in automotive applications, manufacturing applications, as well as in heavy-duty machines.

Reference 6309 SKF

£15.37

VAT excluded

Description

SKF Single Row Deep Groove Ball Bearing 45x100x25mm-6309

The Application

Tools for machines and industrial conveyors

The agricultural sector

Product Details

Inner Diameter: 45mm
Outer Diameter: 100mm
Width: 25mm
Closure Type: Open Bearing
Clearance: Normal Radial Clearance
Material: Bearing Steel
Dynamic Load: 55.3kN
Static load: 31.5kN
Cage: Sheet Steel Cage
Bore: Cylindrical Bore
Weight: 0.817 kg
Country of Origin: Italy
Temperature Range: -20 to +150 °C
Ball Rows: Single Row
SKF performance class: Explorer
Ball Bearing Type: Single Row Deep Groove Ball Bearing
Partial Bearing Code: 6309
Model Number p: 6309

In stock 201 Items

EAN13 7316577062000

MPN 7316577062000
