INA RCJY17- 4 Hole Flanged Bearing Unit

INA RCJY17- 4 Hole Flanged Bearing Unit

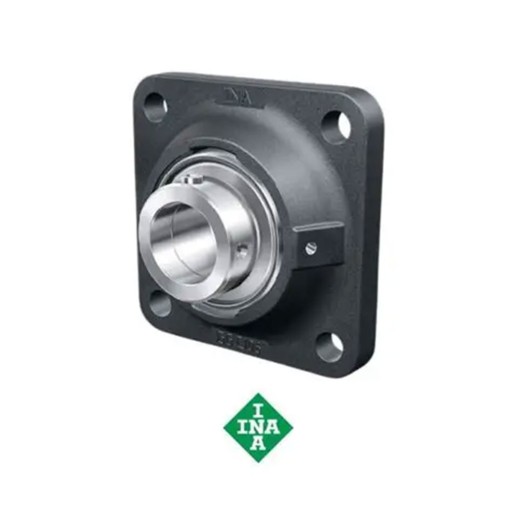

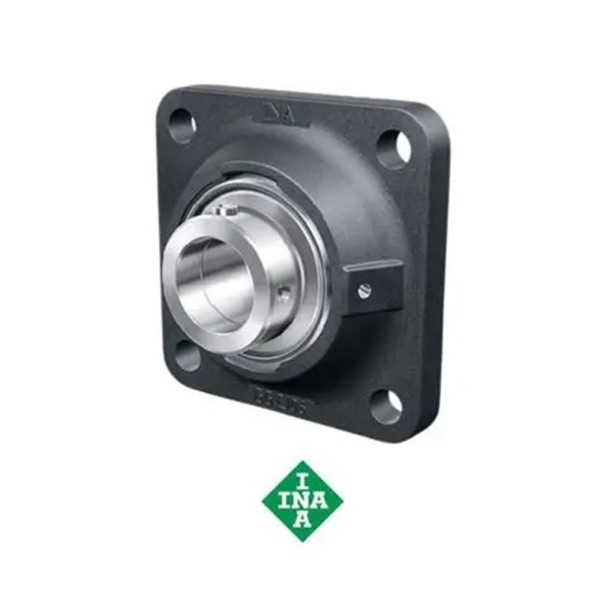

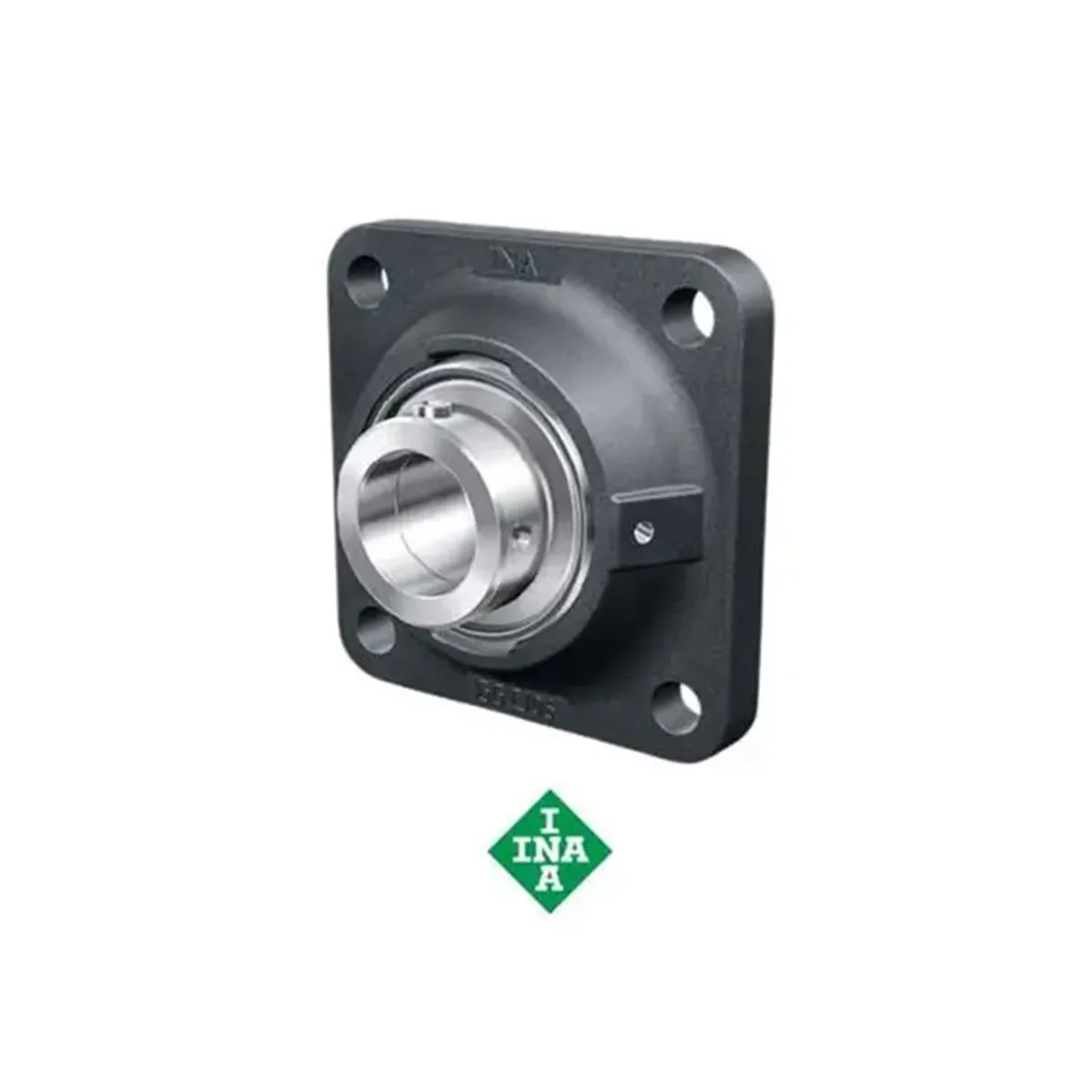

INA RCJY17 Four Hole Cast Iron Square Flanged Housing With Grub Screws 17mm Bore Insert

The INA 4 hole flanged bearings offer a durable, fully sealed design with grub screw fixing for easy installation. Their cast iron housing with through-holes ensures precise mounting, while the spherical bearing and concave bore allow the shaft to tolerate misalignment up to 5° without relubrication. Re-lubricatable and built for reliable performance, these 4-hole flanged units are ideal for industrial machinery, conveyors, and heavy-duty applications requiring long-lasting, maintenance-friendly bearings.

Reference RCJY17 INA

£25.46

VAT excluded

Description

INA RCJY17 Four Hole Cast Iron Square Flanged Housing With Grub Screws 17mm Bore Insert

Product Details

Inner Diameter: 17mm
Material: Cast iron, bearing made of standard bearing steel
Weight: 0.430 kg
Country of Origin: Vietnam
Temperature Range: -20 to +120 °C
Seal: Double Seal
Version: Standard Version
Fixing: Threaded Pins
Form: Square
Colour: Dark Grey
Number Of Holes: 4

In stock 9 Items

EAN13 4012802820560

MPN RCJY17-XL

Reviews (0)

No reviews
