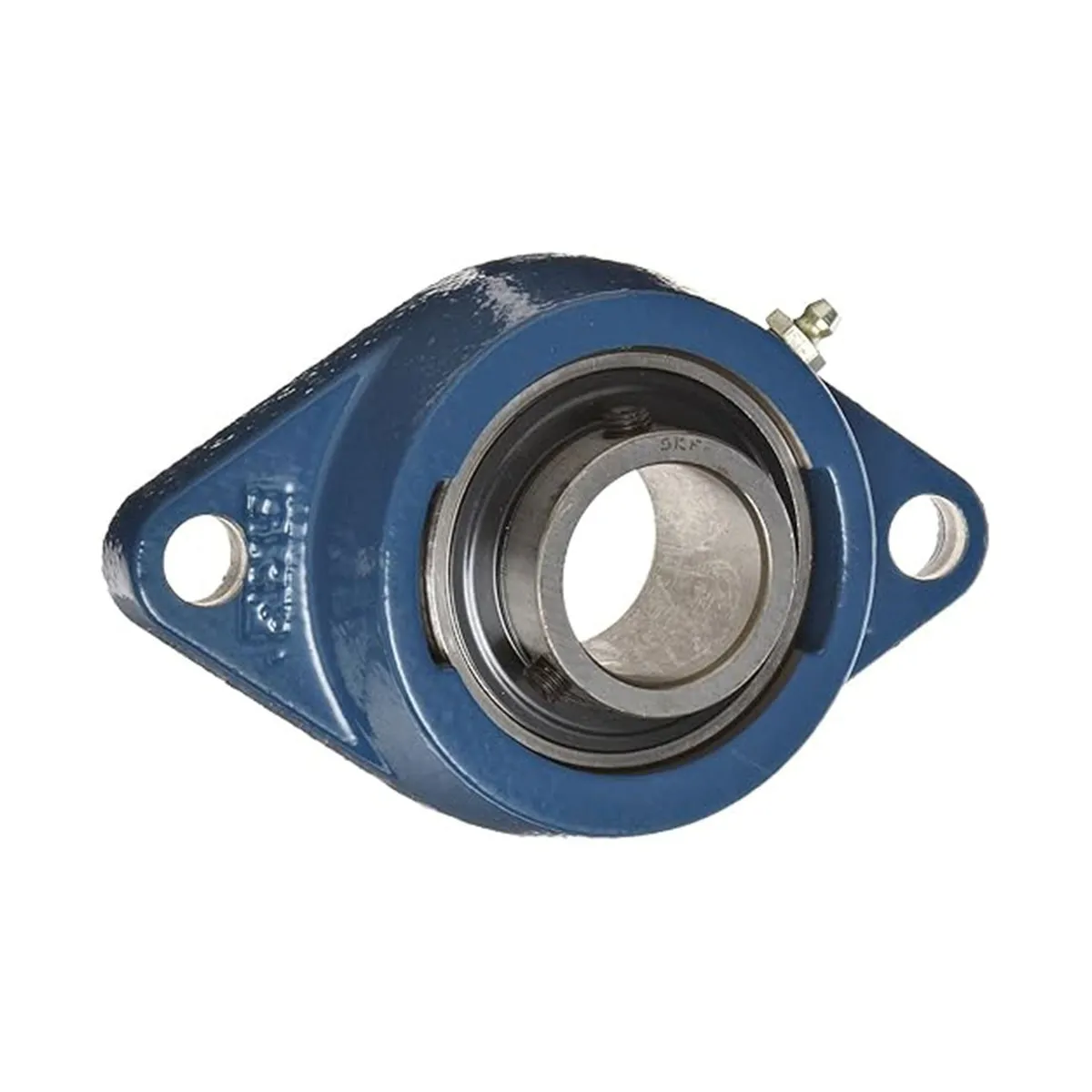

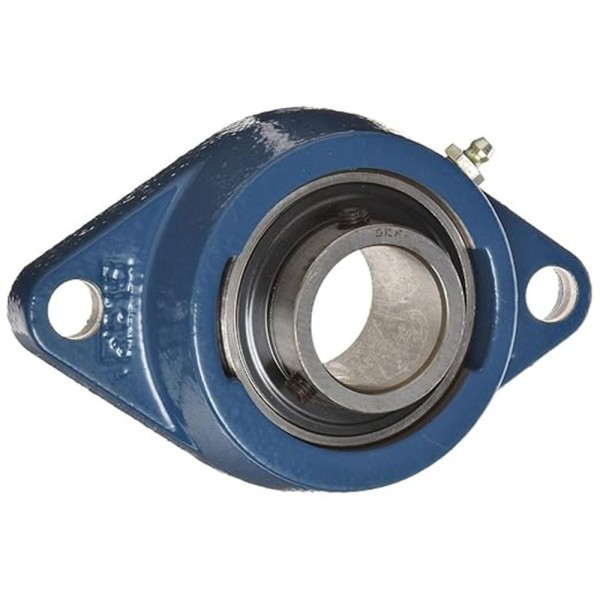

SKF FYTB12TF – 2-Hole Flanged Bearing

SKF FYTB12TF – 2-Hole Flanged Bearing

SKF FYTB12TF 2 Hole Flanged Bearing With 12mm Insert

SKF 2 Hole Flanged Bearing Units feature an oval cast housing with two mounting holes, designed for secure and reliable shaft support in a wide range of industrial applications. Equipped with a Y-bearing and grub screw locking mechanism, these units ensure stable positioning and smooth operation. The integrated grease fitting allows easy re-lubrication, extending bearing service life and maintaining performance even in demanding environments. These flanged bearing units are ideal for applications exposed to high contamination, elevated temperatures, high operating speeds, or heavy loads, making them a dependable choice for long-term operation.

Key Benefit

Built in grease fitting enables convenient re-lubrication and reduced maintenance

Reference FYTB12TF SKF

£21.59

VAT excluded

Description

SKF FYTB12TF 2 Hole Flanged Bearing With 12mm Insert

Product Details

Inner Diameter: 12mm
Material: Cast iron, bearing made of standard bearing steel
Weight: 0.360 kg
Country of Origin: Serbia
Temperature Range: -30 to +120 °C
Seal: Seal with a flinger shield
Version: Standard Vesrion
Fixing: Threaded Pins
Form: Oval
Colour: Dark Blue
Number Of Holes: 2

In stock 79 Items

EAN13 7316570249200

MPN 7316570249200

Reviews (0)

No reviews
