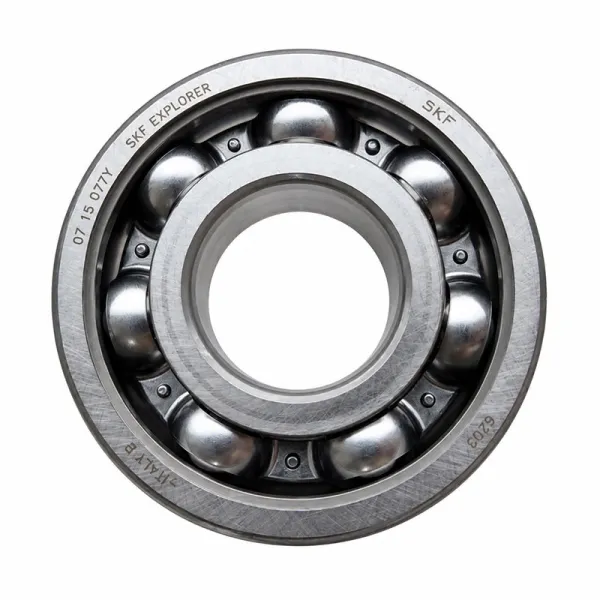

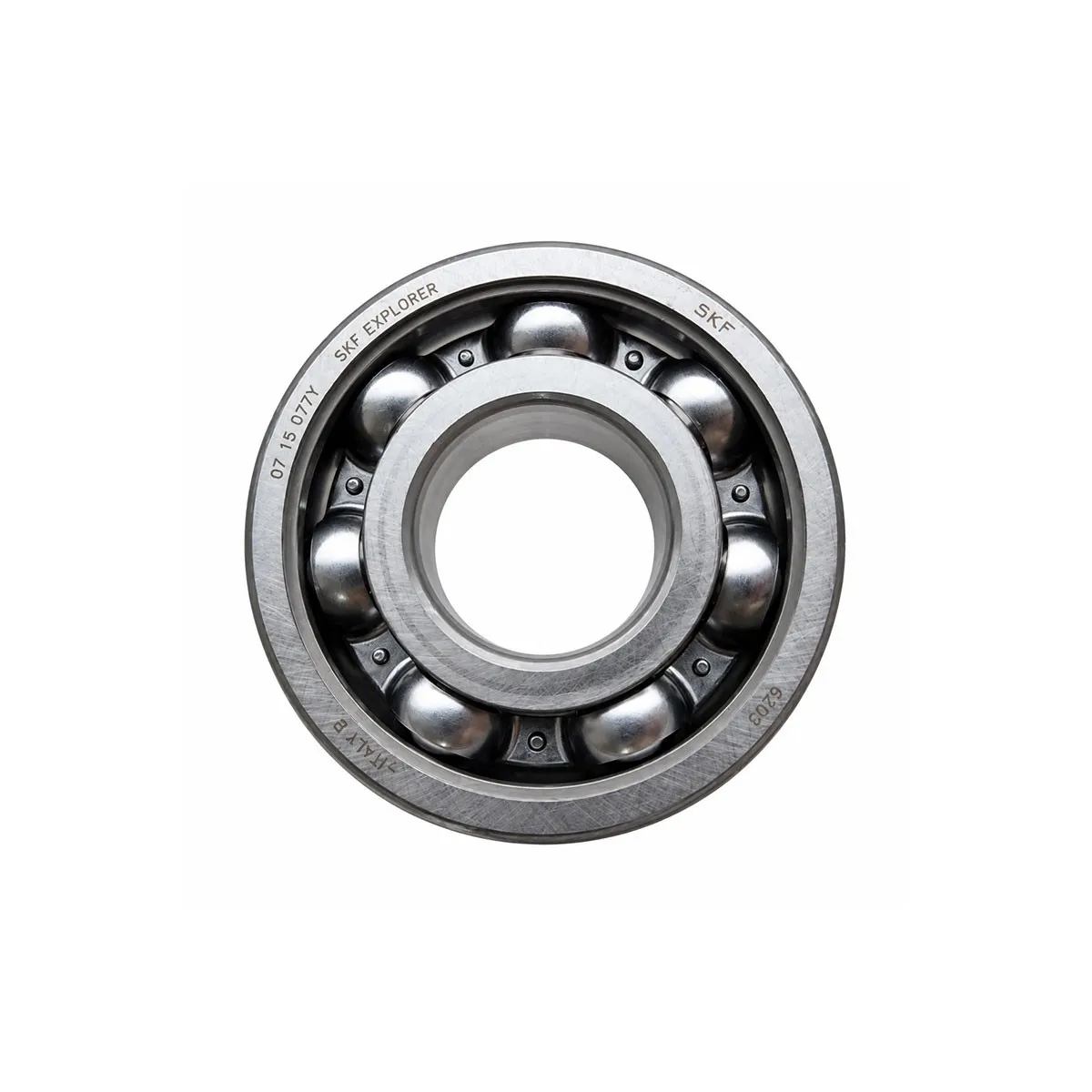

SKF 6209/C3 Open Deep Groove Ball Bearing
The SKF 6209/C3 is an open single row deep groove ball bearing designed for smooth rotation and effective shaft support. It accommodates radial loads and axial loads in both directions. Its increased C3 internal clearance makes it suitable for rotating assemblies where operating conditions require greater than normal clearance.
Design and Construction
The SKF 6209/C3 features steel balls running between deep raceway grooves. A sheet metal cage separates and guides the rolling elements during rotation.
Its bearing steel construction provides effective load support. With dimensions of 45x85x19mm, the bearing offers a smaller outside diameter than the 6309 series while retaining the same 45mm bore.
C3 Internal Clearance and Open Design
The bearing features C3 radial internal clearance, which is greater than normal clearance. This helps accommodate reductions in operating clearance caused by interference fits and temperature differences between the bearing rings.
Its open design without seals or shields allows grease or oil to reach the rolling elements directly. Suitable external sealing may be required to protect against contamination and lubricant loss.
Applications
The SKF 6209/C3 can be considered for rotating equipment where its dimensions and increased internal clearance meet the operating requirements.
Electric motors
Industrial pumps
Fans and ventilation equipment
Conveyor drive assemblies
Gearboxes and mechanical transmissions
General industrial machinery
Benefits
The SKF 6209/C3 offers several practical advantages.
C3 Internal Clearance: Helps accommodate reductions in operating clearance caused by shaft fits and temperature differences.
Low Friction: Supports smooth rotation while helping reduce mechanical energy losses.
Combined Load Support: Accommodates radial loads and axial loads in both directions.
Compact Bearing Profile: Offers a smaller outside diameter than the 6309 series for assemblies designed around the 6209 dimensions.
High Speed Capability: Its deep groove design supports relatively high rotational speeds with suitable lubrication.
Flexible Lubrication: Open construction allows direct grease or oil lubrication.
Bearing Selection
Before purchasing, confirm that the 45x85x19mm dimensions and C3 radial internal clearance match your equipment requirements.
Operating loads and speeds should be checked alongside shaft and housing fits. Lubrication and contamination exposure must also be considered. If normal internal clearance or integrated sealing is required, a different SKF 6209 variant may be more suitable.
