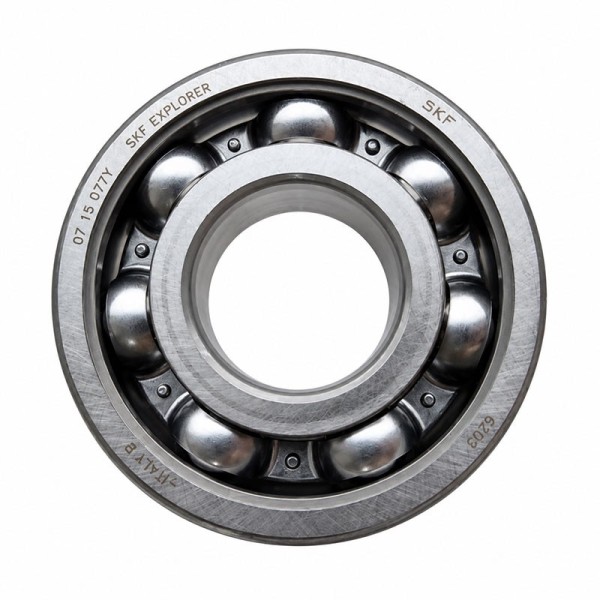

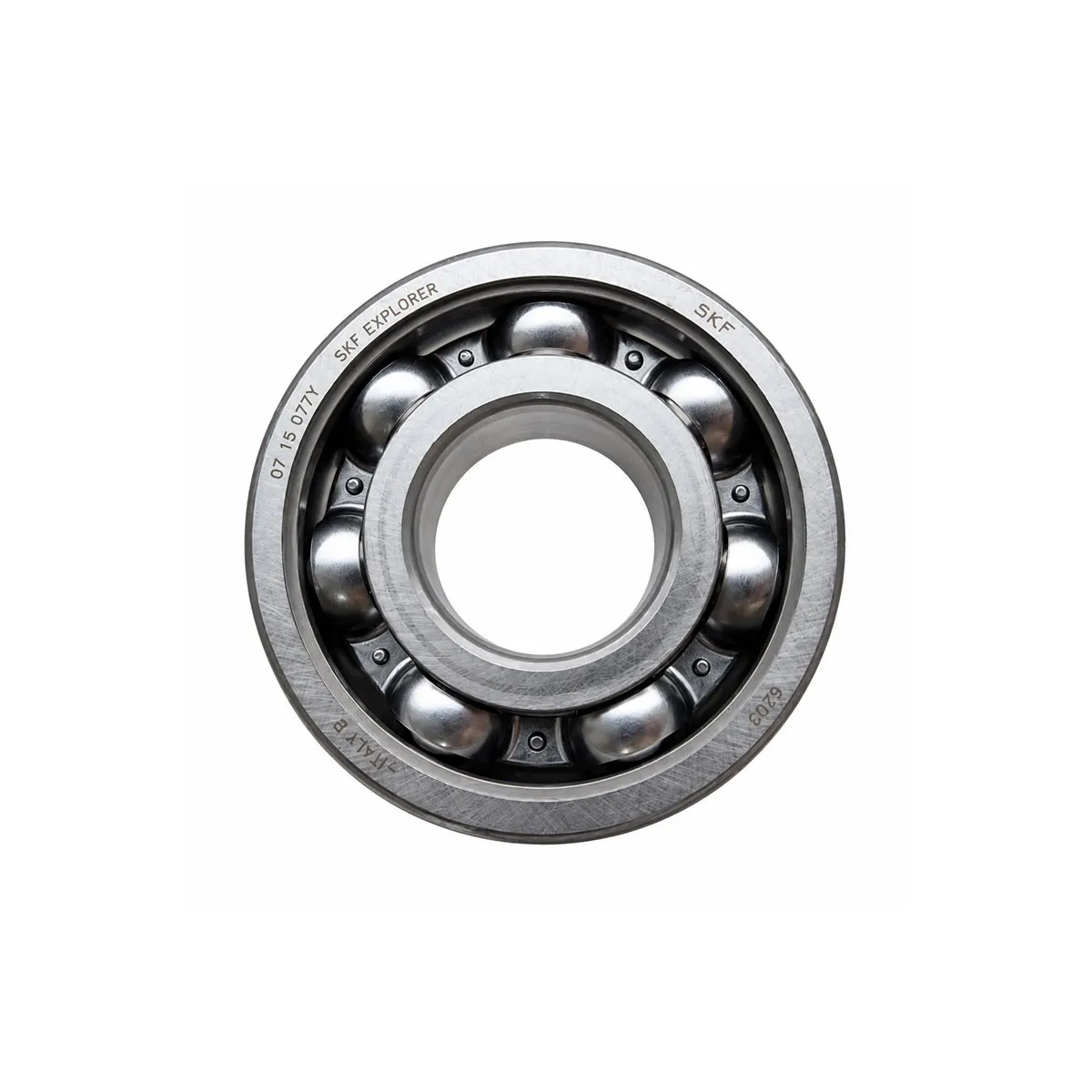

SKF 6309/C3 Open Deep Groove Ball Bearing
The SKF 6309/C3 is an open single row deep groove ball bearing designed for efficient shaft support in industrial rotating machinery. Its deep raceway construction accommodates radial loads and axial loads in both directions while maintaining low friction. The increased internal clearance makes it suitable for assemblies where C3 clearance is specified.
Design and Construction
The SKF 6309/C3 features a single row of steel balls running between deep raceway grooves. A sheet metal cage separates and guides the rolling elements during rotation.
Its bearing steel construction provides effective load support under suitable operating conditions. With dimensions of 45x100x25mm, the bearing offers a substantial cross section for machinery requiring the standard 6309 size.
C3 Internal Clearance and Open Design
The bearing features C3 radial internal clearance, which is greater than normal clearance. This helps accommodate reductions in operating clearance caused by interference fits and temperature differences between the bearing rings.
Its open design without seals or shields allows grease or oil to reach the rolling elements directly. Appropriate external sealing may be necessary to prevent contamination and lubricant loss.
Applications
The SKF 6309/C3 can be considered for rotating machinery where its dimensions and increased internal clearance meet the operating requirements.
Electric motors
Industrial pumps
Fans and ventilation equipment
Conveyor drive assemblies
Gearboxes and mechanical transmissions
General industrial machinery
Benefits
The SKF 6309/C3 offers several practical advantages.
C3 Internal Clearance: Helps maintain appropriate operating clearance where shaft fits or temperature differences reduce internal clearance.
Low Friction: Supports smooth rotation while helping reduce mechanical energy losses.
Combined Load Support: Accommodates radial loads and axial loads in both directions.
Robust Construction: Its 6309 series design provides effective load support within the specified operating limits.
High Speed Capability: Deep groove raceways support relatively high rotational speeds with suitable lubrication.
Flexible Lubrication: Open construction allows direct grease or oil lubrication.
Bearing Selection
Before purchasing, confirm that the 45x100x25mm dimensions and C3 radial internal clearance match your equipment requirements.
Operating loads and speeds should be checked alongside shaft and housing fits. Lubrication and contamination exposure must also be considered. If normal internal clearance or integrated sealing is required, a different SKF 6309 variant may be more suitable.
